Dear customer, due to product upgrade,
the size and weight of the product you receive may be different.
Model:FFSP-80M
Material:Monocrystalline silicon
Maximum Power(Pmax): 80W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):4.44A
Open-Circuit Voltage (Voc): 20.5V
Short-Circuit Current (Isc):4.69A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:22x20x0.47(in)/54x50x1.2(cm)
Expansion Dimension:40x22x0.24(in)/100x54x0.6(cm)
Net Weight:2.4kg
Package Weight:3.1kg
Package Size:63x61x6cm
Package List:
1*80W Flexible Foldble Solar Panel
1*3M wire
1*10A 12Vcontroller
1*DC cable and connector
Model:FFSP-110M
Material:Monocrystalline silicon
Maximum Power(Pmax):100W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):6.1A
Open-Circuit Voltage (Voc):22.5V
Short-Circuit Current (Isc):6.35A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:28×20.5×0.47(in)/70x50x1.2(cm)
Expansion Dimension:40x28x0.24(in)/100x70x0.6(cm)
Net Weight: 2.7 kg
Package Weight:3.6kg
Package Size:75x58x7cm
Package List:
1*100W Flexible Foldble Solar Panel (50W*2)
1*3M wire,
1*10A 12Vcontroller,
Model:FFSP-160M
Material:Monocrystalline silicon
Maximum Power(Pmax): 160W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):8.89A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):9.14A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:22×20.67×0.94(in)/56×52.5×2.4(cm)
Expansion Dimension:82.7x22x0.24(in)/210x56x0.6(cm)
Net Weight:4.5kg
Package Weight:5.4kg
Package Size:68x56x6cm
Model:FFSP-220M
Material:Monocrystalline silicon
Maximum Power(Pmax): 200W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):11.12A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):11.36A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:28x21x0.9(in)/70x50x2.4(cm)
Expansion Dimension:85x28x0.24(in)/216x72x0.6(cm)
Net Weight:5.3kg
Package Weight:6.3kg
Package Size:80x60x7cm
Package List:
1*200W Flexible Foldble Solar Panel
1*3M wire,1*20A 12Vcontroller,
A total of 4M long cable. With alligator clips.
Cable thickness: 2×1.5 mm²
Model:FFSP-320M
Material:Monocrystalline silicon
Maximum Power(Pmax): 300W±3%
Maximum Power Voltage(Vmp):18.00V
Maximum Power Current (Imp):16.67A
Open-Circuit Voltage (Voc): 22.50V
Short-Circuit Current (Isc):16.92A
Nominal Operating Cell Temp.(NOCT):-45 to 80℃
Maximum System Voltage: DC1000V
Foldable Dimension:39.37×19.69×0.94(in)/100x50x2.4(cm)
Expansion Dimension:78.74×39.37×0.24(in)/200x100x0.6(cm)
Net Weight:7.1kg
Package Weight:8.2kg
Package Size:108x57x7cm
Package List:
1*300W Flexible Foldble Solar Panel
A total of 4M long cable. With alligator clips.
1*20A 12Vcontroller
(The above data is based on the laboratory standard test environment)
For field connections,use minimun No.12AWG copper wires insulated for a minimum 90℃
Standard Test Conditions:
AM=1.5 IRRADIANCE=1000W/m2 Temp.=25℃
(The size is manually measured and there is a certain error.）
Controller support lead-acid,lithium ions and LiFePO4 battries.
Cable thickness: 2×1.0 mm²
A total of 4M long cable. With alligator clips.
Kholmatzhon Daniarov –
Isadora Heer –
Fritz Filippi –
Prudence Rodden –
Shante Dezern –
Micael Montes –
Wendelin Jonas –
Xose Mendez –
Carla Poole –
Lluciano Marcos –
Lisabeth Brennen –
As described, I recommend it.
Lorean Soni –

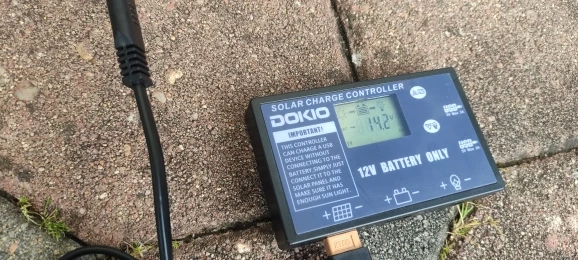

The solar panel looks and feels good, I haven’t seen any summer sun yet, but with the winter sun there was already a little power coming out. The only problem I have is with the controller, it does not stop charging. My gel battery continued to charge to even up to 15V while it was configured to a maximum of 14.4V. This should even have been a maximum from 14.2V for a gel battery, unfortunately this setting is not changeable, there is only a hard set value per battery type.
I hope the seller can help to solve the issue for the far over charge.
Kemberly Roza –
I don’t know about anyone, on a cloudy winter day I have 0.2 ampere exercises. That is, consider that there is no current. I will hope that the sun will be better. Appearance-everything is beautiful.
Branda Goshorn –
Z
Dastan Nurbolatev –
Like they used to take 2 to 160 W
Normal heat test on the road
Alisa Watts –
Debbie Tanner –
Demarcus Mcmullen –
Cindi Mcfarlin –
Fukumoto Shusake –
Néo Lortie –
Is the third one I buy from this brand, different Watts, this 80w is fine, for lightness, ease of unfolding, but for twice the weight there is obviously quite a difference from 160w when charging, The 80w Sun loaded the same as the 160w shade and indoors, the 100w depends on what you want the most balanced, for a medium camper with nothing added, sporadic use of 100w, If you have added things and the 160w is more parked, for a small van or as a supplement of 100w the 80w is fine or transport for other purposes.
Valtena Amodei –
A great article works well correlated with so many accessories for connecting and charging a battery… Very good seller thanks ….
Savannah Brotherton –
Good packaging, accurate delivery. The panel came without damage. It was not yet possible to check under load.
Verline Cordon –
Well received, fast and very well packed.
Plus case test in real conditions.
Reiko Jeanlouis –

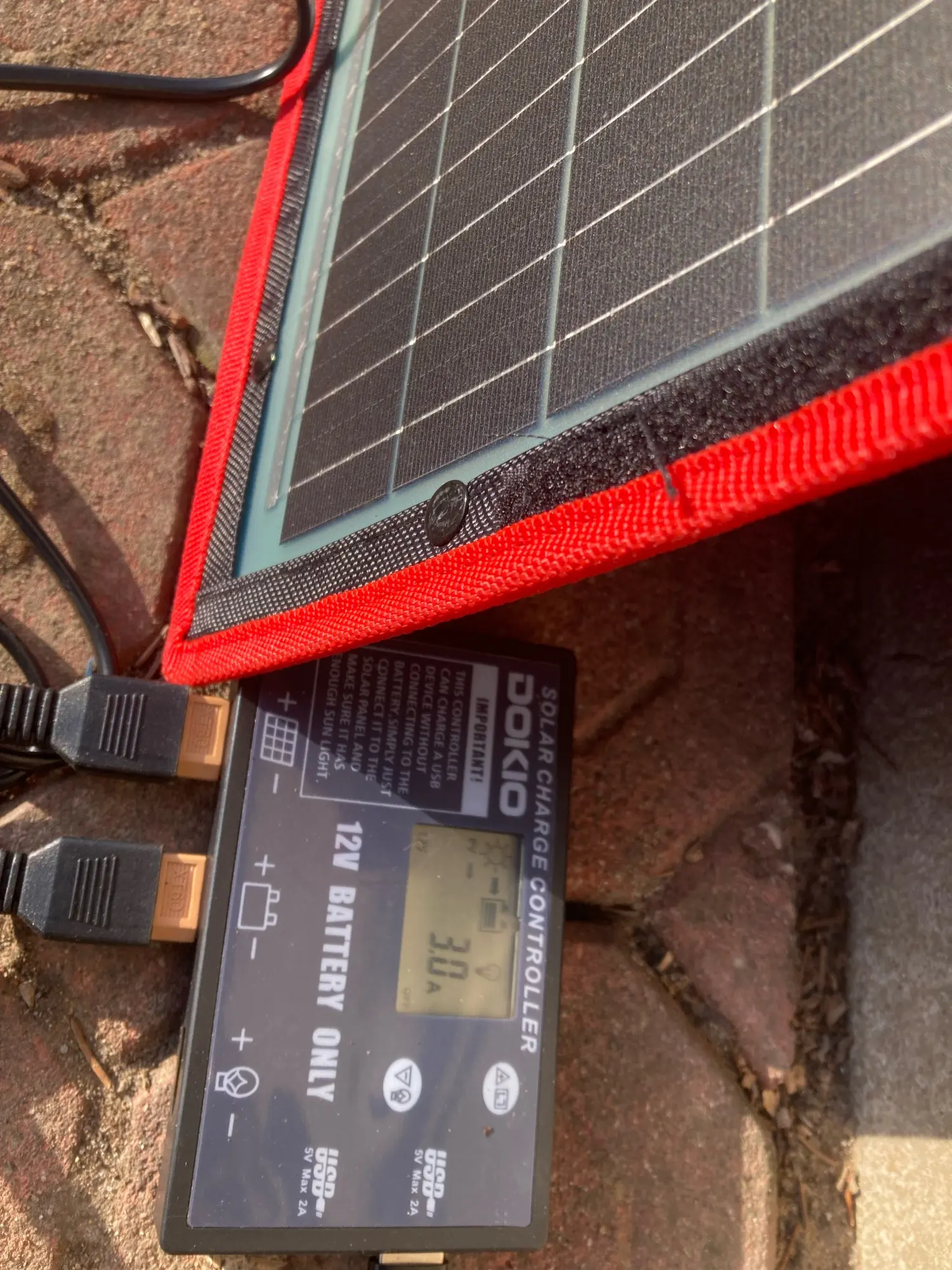

Very fast shipping! Big applause for the seller!!! The product is quite good. I am satisfied !! The photo shows charging in January.
Klemens Totleben –
Works well, used as an extra electricity for an electric fence. Confirms to the description
Maariya Kramer –
Ordered for 100 W, everything works, tried to charge the phone directly, in an hour almost 30) %, while the sun did not illuminate the entire panel. In the summer I hope I will show myself well…
Niam Mullins –
Charging is very good ~
The panel is also neat and overall I am very satisfied ~
Rudolf Kirsch –
Is distinguished by solarene panel.
Ted Basye –
The panel arrived in 2 days after placing the order. Packaging in good condition inside all the accessories that should be. Unfortunately, the power test could not be performed in a short time because the clouds themselves outside but the panel works because several Watt were able to pull out in a completely cloudy sky.
Émeric Figuier –
Impeccable, good product and good seller. Delivery on time in well-packed. I recommend this seller.
Yuvraj Wolf –
Well received, perfect, arrive in advance without any problems.
Seller recommended and did not hesitate
Vladimiro De Angelo –
I asked if there were any MC4 outlets before ordering, I was confirmed, I ordered, I received. No MC4 sockets. .. I complained, the seller reimbursed a part because of his mistake. Very professional on his part, it’s appreciated
Rosalie Robertson –
In the initial test, everything works. The maximum speed will be clear only when there are clear, sunny days. So we wait… I will add the review
but for now-preliminary thanks to the seller, the product is high quality and understandable.
Bonnie Montes –
Ok! Came the whole thing. I hope it will be useful in the summer in nature.
Fernand Aveline –
Controller with two buttons. Works everything, the battery is charged.
Graham Rankin –
Good product and very fast shipping. Works very well. The seller is very kind and attentive to answer questions.
Nour Hartman –
The product is very good, I order for the second time. The seller is adequate, always get in touch, I recommend.
Speranzio Bartolone –
Well, he arrived in 48h. I tried it on a sunny winter day in the morning and it gave between 5-6A. Well packed
Kathi Okamura –
I have not tried them yet but they come well I have others like them and they work luxury
Durante Sciara –
Like they used to take 2 to 160 W
Normal heat test on the road
Roderick Roth –
Delivered to the next thermal and ohaino. Packed good. On a quiet winter day, the viproduvannya showed the phone charging.
Joseph Garreau –
The panel is really working! With a minimum sun, it was possible to obtain 3,5 amperes of 13,8 volts. Seller, so handsome in general!!! Came across a controller with incorrect work, sent a new one without any problems. I recommend this seller and store on 1000%.
Mahi Reid –
Delivery super fast, on the 4th day the item was there. Looks good, not yet tried, but high quality.
Chae Jiang –
product content came as described. The installation instructions in the box were clear. The product is very successful for use.
Ira Forster –
Very fast delivery. Product look great.
Liberatore Accordino –
When using the camping area, it was confirmed that the output was up to 102W between 1 pm and 3 pm in early winter.
Alfredo Lamanna –
As expected, checked, works.
Kawano Tanyu –
The delivery is fast. Satisfied with the order.
Craig Piro –
Product works as described!!
Sigmund Bruckmann –
It charges very well.
Maximilien Chopin –
The product is excellent without damage all works
Alpha Um –
Very good quality!
Tandy Hoyte –
everything is perfect
Zoraida Swick –
I bought it for power bank and car inverter charging.
Efan Wharton –
Fast delivery
Alfonso Villapol –
Everything is clear
Finn Junkermann –
Fast shipping
Della Drew –
ok
Enrique Lutz –
Came quickly. Everything is super.
Renesmae Knapp –
Is the third one I buy from this brand, different Watts, this 80w is fine, for lightness, ease of unfolding, but for twice the weight there is obviously quite a difference from 160w when charging, The 80w Sun loaded the same as the 160w shade and indoors, the 100w depends on what you want the most balanced, for a medium camper with nothing added, sporadic use of 100w, If you have added things and the 160w is more parked, for a small van or as a supplement of 100w the 80w is fine or transport for other purposes.
Iside Casaletto –
A great article works well correlated with so many accessories for connecting and charging a battery… Very good seller thanks ….
Emmanuel Gillie –
Good packaging, accurate delivery. The panel came without damage. It was not yet possible to check under load.
Aliya Fernandez –
Well received, fast and very well packed.
Plus case test in real conditions.
Cassey Odle –
Very fast shipping! Big applause for the seller!!! The product is quite good. I am satisfied !! The photo shows charging in January.
Wendi Raver –
Works well, used as an extra electricity for an electric fence. Confirms to the description
Emma Carra –
Ordered for 100 W, everything works, tried to charge the phone directly, in an hour almost 30) %, while the sun did not illuminate the entire panel. In the summer I hope I will show myself well…
Winston Hyde –
Charging is very good ~
The panel is also neat and overall I am very satisfied ~
Daanyal Shepard –
Is distinguished by solarene panel.
Marchelle Dowden –
The panel arrived in 2 days after placing the order. Packaging in good condition inside all the accessories that should be. Unfortunately, the power test could not be performed in a short time because the clouds themselves outside but the panel works because several Watt were able to pull out in a completely cloudy sky.
